Medical Fractional Co2 Laser machine

Place of Origin : China
Brand Name : Wonwell
Certification : CE,ISO
Model Number : WW
MOQ : 1sets
Price : negotation
Packaging Details : standard export package
Delivery Time : 3-5days after order
Payment Terms : TT;Western union, paypal
Supply Ability : 5000sets/month
Contact Now

Medical Ultra Pulse Co2 Laser

  • Laser wavelength10.6um
  • Laser output modeSingle,Continuous, Repeat, Super pulse
  • Beam ModeLow modules
  • Laser spot diameter≤0.5mm
  • Wiring voltage12-15kv
  • Rated current20mA
Treatment Principle:
Mejire Co2 instrument uses the most advanced micro-lens technology, which allows the laser system to generate a large number of tiny pulse beam. It can be formed of a 0.12mm to 0.25mm, and a depth of 2 mm minimally invasive region in the skin. when these beams works on the skin tissue, It will form a large number of small Minimally invasive zone and heat accumulation area or Microthermal Zone. Then the epidermal pigment tissue will be partition and gasification. In addition, the accumulation of heat in the dermis will make the skin collagen immediate contraction and promote the skin collagen regeneration. So as to reach achieve the effect of wrinkle removal, scar removal, skin rejuvenation, pigmentation abnormalities and other skin problems healing and improved
How CO2 laser is different?
Before fractional laser, many patients endured long, often painful laser resurfacing procedures with lengthy recoveries in order to achieve skin rejuvenation. Historically, many procedures involved vaporising an entire layer and surface of skin, resulting in significant downtime, discomfort and prolonged redness. In addition, old CO2 lasers could not treat non-facial areas like the neck and other area easily because skin in these areas did not heal as well as the face.

Application:
1. Main function: scar removal (2 kinds of treatment modes: Fractional mode for scanning; Pulsed mode for cutting). All kinds of excavated type of scars, Like traumatic scars, surgical scars, hypertrophic scar and smallpox scar,etc.
2. Remove wrinkles around eyes, such as crow's feet, etc. Remove wrinkles on the forehead and around mouth.
3. Removal Nevus,Warts ,and Small tumor of the skin resection.
4. Skin rejuvenation and skin lifting, Laser skin resurfacing.
5. Surgery operation, Dermatology: cauterize, incise, solidify and radiate for tissue of human body.
6. Remove stretch marks and other kinds pitting scar,acne scars.
7. Remove melasma, freckles, age spots,etc.

Advantage of Mejire Co2 laser system:
1. Super 10.4inch luxurious LCD touch screen, human-computer interface more convenient operation and more accurate treatment.
2. More than 7 kinds of scan patterns (ellipse scan, square scan, rectangle scan, triangle scan ,Polygon scan and so on) for more convenient operating with less cost.
3. Flexibility switch between 2 modes: ultra Pulsed mode(for cutting) and Fractional Mode(scanning). More wider clinical application range.
4. 7 joint arm for more flexible and simple operation. Convenient for various treatment angles and areas.
5. The Focus spots diameters and intervals can be adjusted freely, Will do more accurate treatment.
6. 10W, 20W, 30W Power supply, free choice according to different clinical needs.
7. The single pulse energy can be up to 800MJ to eliminate the deeply endogenous pigmentation thoroughly and easily.
8. Using the super cooling system with stable performance to ensure and meet the continuously long time work of machine.
■ Detailed Pictures

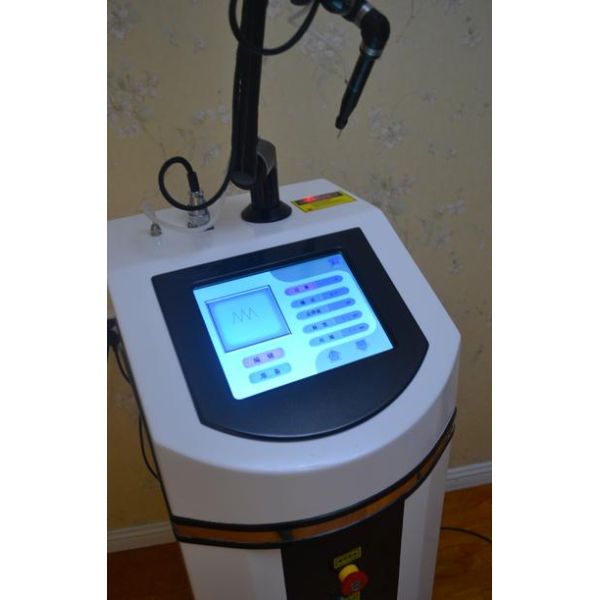

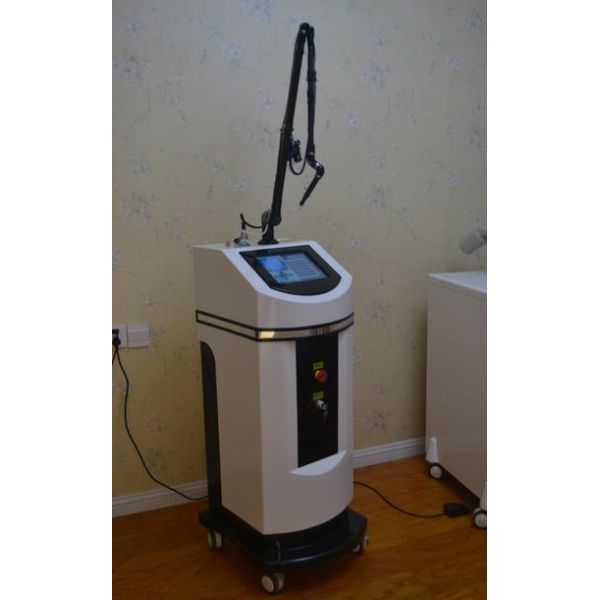

Detailed Parts:

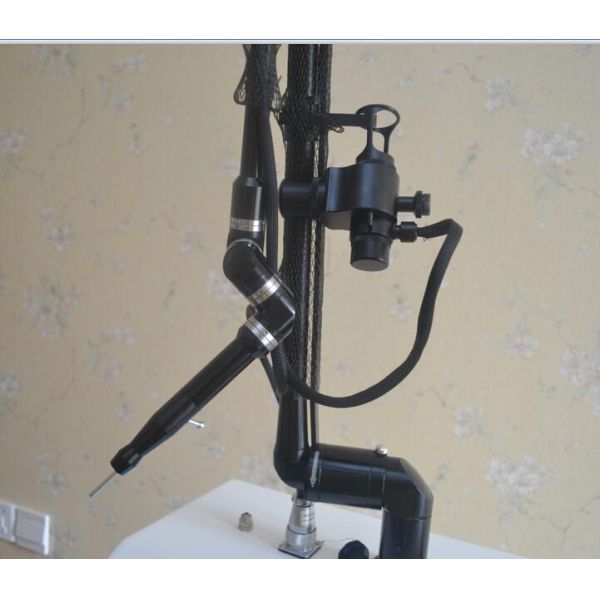

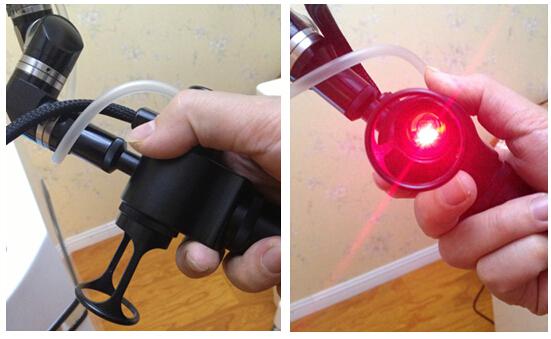

Treatment Heads:

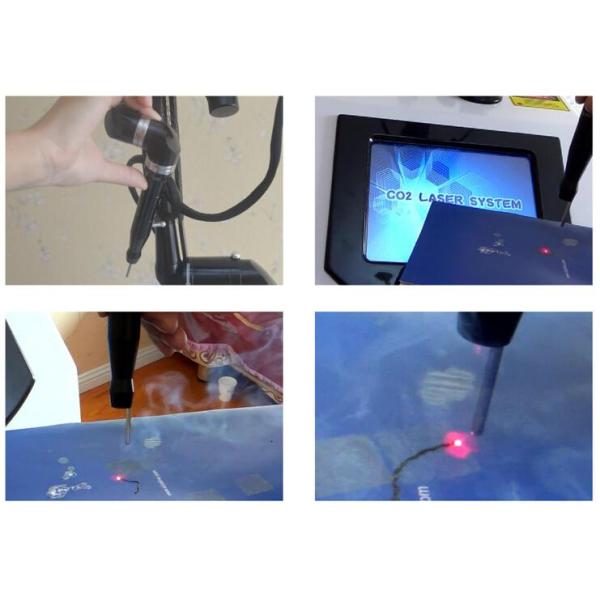

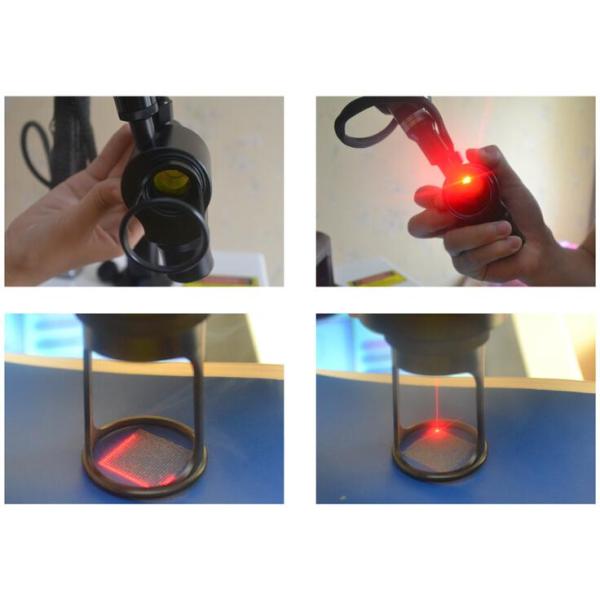

Fractional Co2 Mode (Scanning):


Pulsed Mode (Cutting):

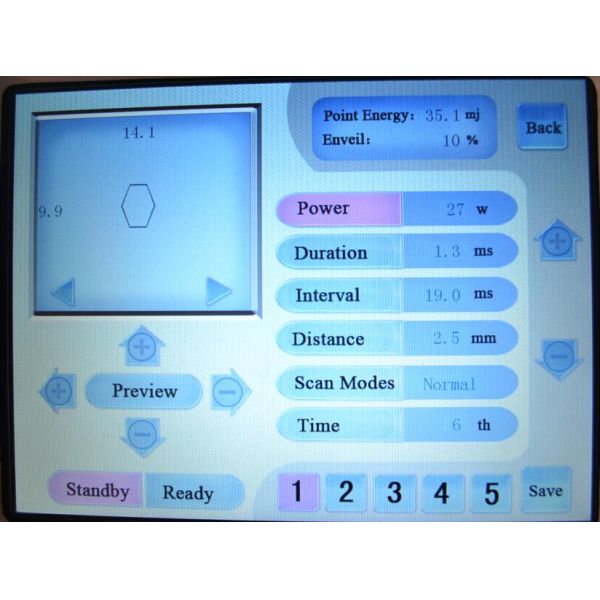

Operation interface :

■ Technical Data
Laser apparatusSealed off laser device stimulated by direct current
Laser wavelength10.6um
Laser output mode:Single,Continuous, Repeat, Super pulse
Beam ModeLow modules
Laser spot diameter≤0.5mm
ModesFractional mode (Scanning)
Ultra Pulsed mode (Cutting)
Wiring voltage12-15kv
Rated current20mA
Laser transmission system7 joint arm
Operation controlFoot switch control
Power1-30w
Laser energy1-250mj
Input powerAC220v±10%
Handpiece tip:two kinds of focus lens for f=100mm, and f=50mm
Operation Interface10.4 inch TFT LCD Touch screen
Aiming beam:Red semi-conductor Laser Wavelength: 650~670nm
Cooling system:Water cooling+air cooling system
Scan patternsMore than 7 kinds
Scan pattern size0.1mmx0.1mm ~ 20mmx20mm
Pulse duration0.1-10ms
Spot distance0.1-2.6mm
Power supplyAC220V±10%,50HZ
Maximum output powerless than 600W



China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

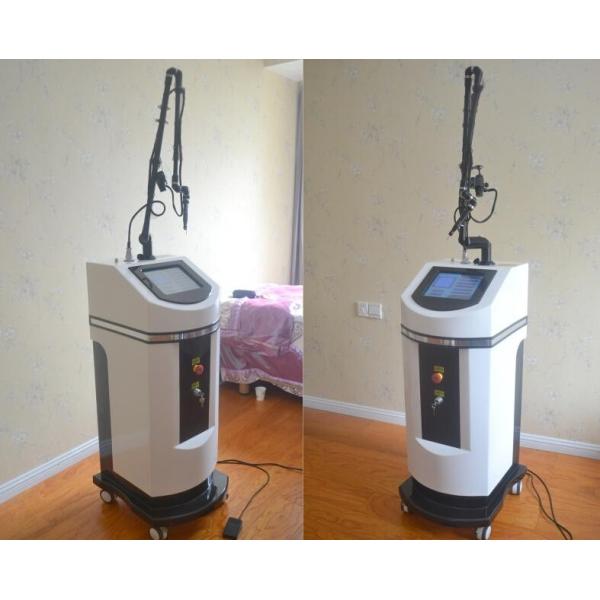

Medical Fractional Co2 Laser machine Images
