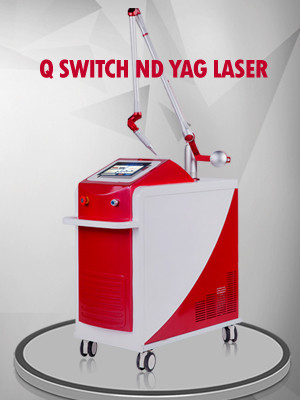

Treatment Principle yag laser tattoo removal
Adopting the Q-Switched ND: YAG model, the equipment uses laser to
emit high energy instantaneously which smashing the pigment of
pathological tissues, namely the laser leading explosive effect:
High energy emits instantaneously, making particular wavelength
laser penetrating epidermis and getting into pathological pigment
tissues in only 6nms.
Then pigments expand in top speed and explode. The superficial
epidermis would be bounded out of body, other part of the pigments
would split into granules which would be engulfed by macrophages,
then exclude by the lymphatic system finally. The pigment becomes
shallow gradually finally disappear while the surrounding normal
skin tissues keep sound as they do not absorb particular wavelength
Application Ranges yag laser tattoo removal
1.Removing the pigment skin pathological changes, the pigmentation
caused by color pigment mixture, Pore remove,Face lift.
2.Removing all kinds of tattoos, specialized in removing red
capillary, coffee, brown, black, cyan and other colorized tattoos.
3.Removing corium spots,mole, birthmark, melasma, freckle, nevus of
Ota ,brown blue nevus,junctional nevus,etc.
4.Effectively remove all kinds of embroider eyebrow, soak lip, eye
line, and lip line.
Advantages: yag laser tattoo removal
1 . 13.6 Inch Super Big Chromatic Touch Screen for more easy and
convenient operation,more humanized design. Double wavelengths
(1064 nm & 532 nm ) to switch convenient.
2. Imported Horizontal Laser,more stable shot and more uniform spot
size,also protect it from dust.
3 . Articulated arm from Korea with low optical loss, low
maintenance, high stability and long lifetime.
4. Red Diode laser aiming beam ,ensure more accurate shots.
Flat-Top beam, ensures energy steady and unique,give good treatment
5. The single pulse energy can be up to 1500mj to eliminate the
deeply endogenous pigmentation thoroughly and easily.
6. High quality of machine shell: Alloy Steel material.(many other
similar machines are made by glass steel or plastic machine case),
and injection molded water tank. All inner are stainless steel
7. Alarm protection system of water flow and water temperature:
protect people and machine against any risk at the first time
8. Perfect cooling system: closed-off water circulation + air, 4
big cooling fans (professional applied to the air conditioner)and
cooling holes to ensure good performance for long time working.
9. Solid laser, produced according to international standard,
stable performance.Wider application scope, and more effective
functions for skin pigmentation, dermal pigmentation, and exogenous
pigmentation. Short treatment period with outstanding effects.
10.CE, ISO13485, EMC, IEC, ROHS certificates approved.
Technical Parameters yag laser tattoo removal
|Laser Type||Q-switched Nd: Yag Laser|
|Laser Wavelength||1064nm & 532nm & 1320nm|
|Largest output energy of single pulse||1,500mj|
|Indicator||Red Diode laser aiming beam|
|Spot size||0 - 9 mm diameter adjustable|
|Treatment Head||2 heads for change (focusing head and Black Doll head)|
|Delivery system||7 jointed articulated arm counter balance|
|Cooling System||Closed Cycle Water to Air Heat Exchanger|
|Pumping Way||Single xenon lamp, single crystal stick|
|Frequency||1,3 or 5,8,10Hz continuous adjustable|
|Voltage||AC220V/ 110V±10% 50HZ/ 60HZ|
